Product introduction

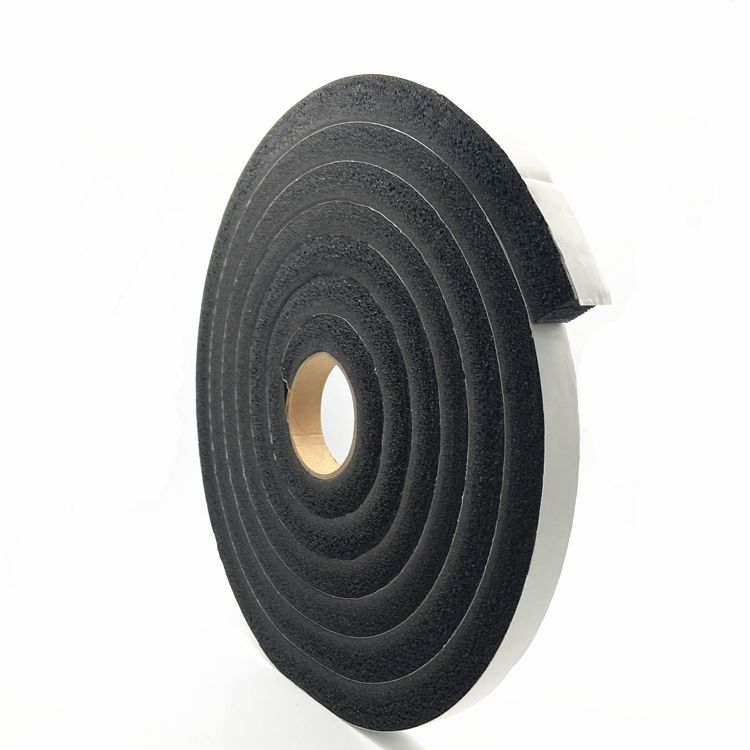

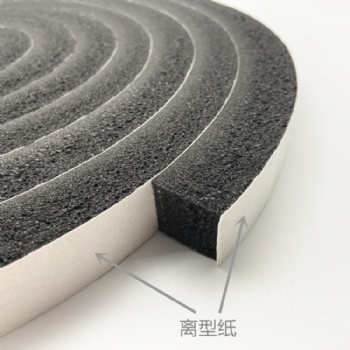

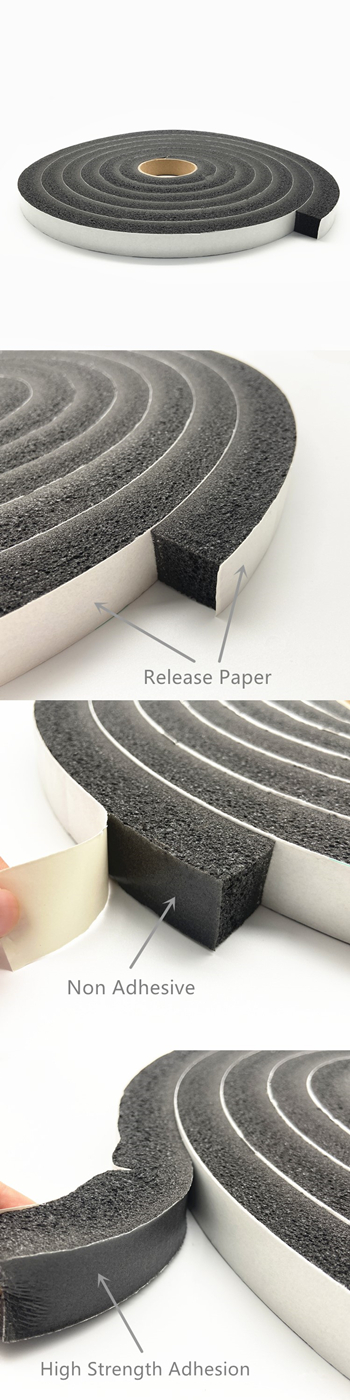

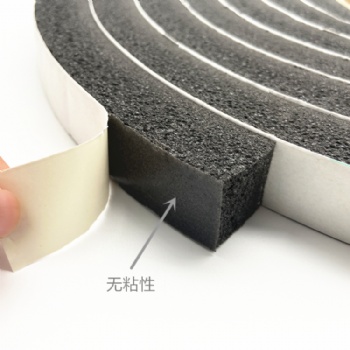

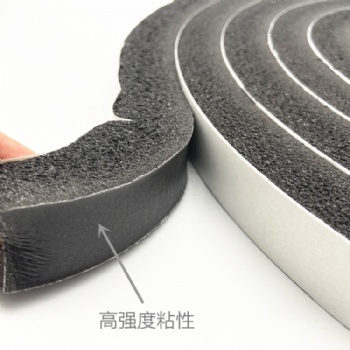

PVC foam tape is primarily a foam compression sealant.The foam is predominantly closed celled. An acrylic pressure sensitive adhesive is coated on one side, and the product has a paper release liner on the other non-adhesive face.It require 30% compression to create a water seal.It is ideal for applications such as appliance seals, wall panels, die-cut,gaskets, and window and door weatherstripping.
We manufacture finished goods in main types of PVC foam, which are:

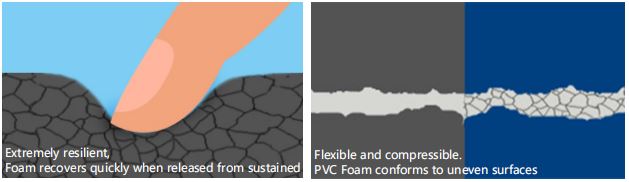

●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces
●Slow recovery PVC foams – ideal for filling irregular surfaces

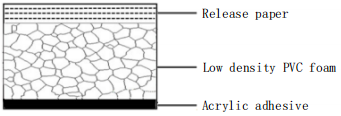

Product structural
Product feature
● Excellent UV resistance and weather resistance
● Closed-cell foam which seals out air, dust and moisture
● Conform to curves and different shapes
● Good compression and adhesive
● Good vibration dampening and cushioning
● Thicknesses from 0.5 mm up to 25 mm
● Flame resistant product which meets FMVSS 302
● Dimension stability

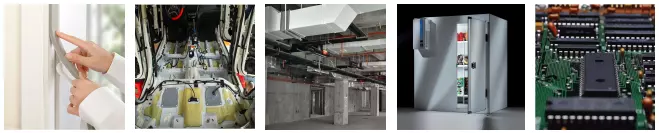

Product application
● Access doors & HVAC seals
● Appliance seals
● Die-cut gaskets
● Cold room seals
● Window and door weatherstripping
● Electronic equipment
● Engine hatch covers
● Automotive application
Technical information
Density 130±20kg/m3 Tensile Strength ≥190kPa 30% Compression Set ≤4% Hardness（Shore 00） 12±5° Elongation ≥210% Flammability
UL-94 HF-1/HBF
FMVSS 302
(V0 can be customized)
UL-94 HF-1/HBF
FMVSS 302
(V0 can be customized)
